Metal Detectors

BEWARE Multi Zone Door Frame Metal Detector (DFMD) Walk-Through Security Scanner with LED Indicator & Adjustable Sensitivity

₹140000 ₹76000

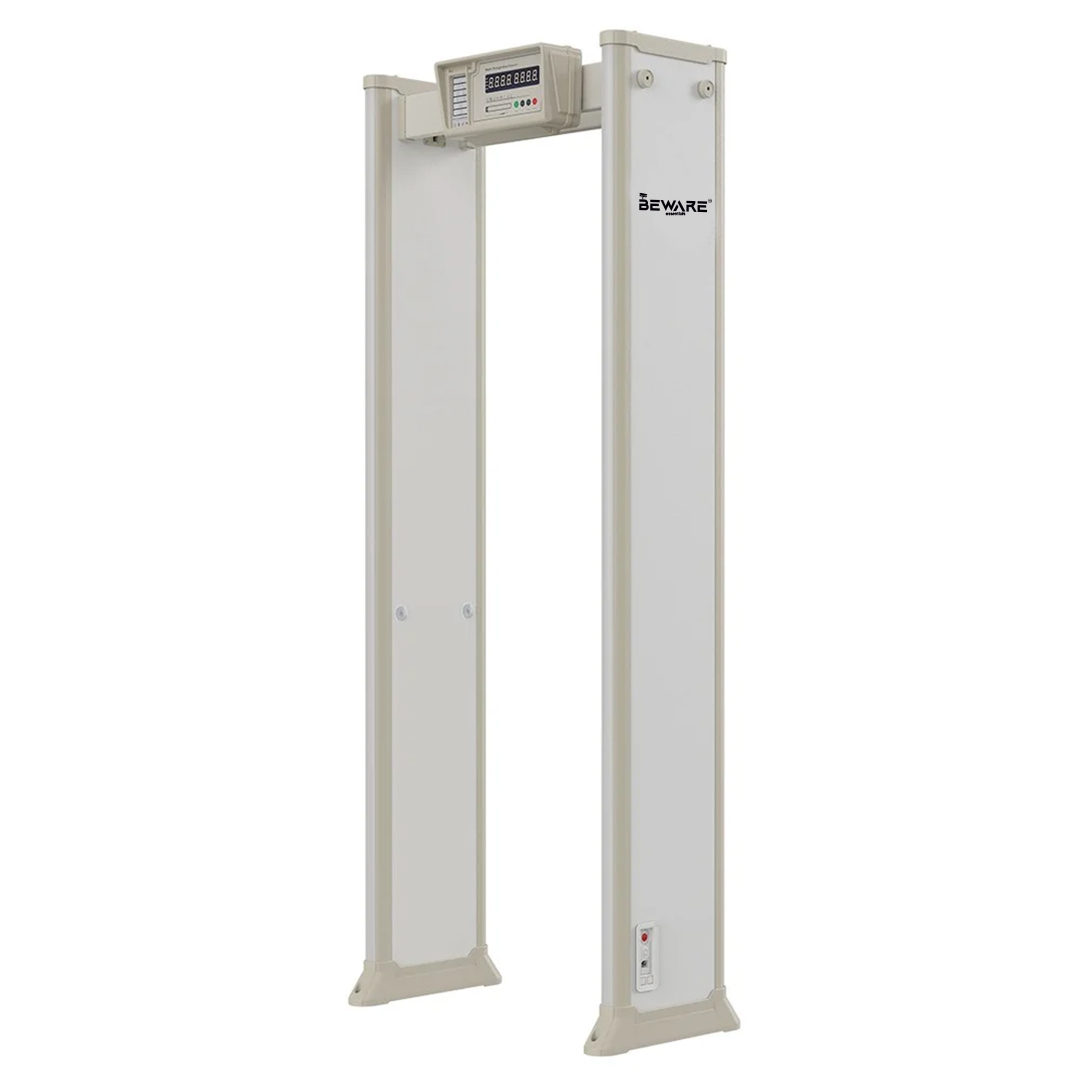

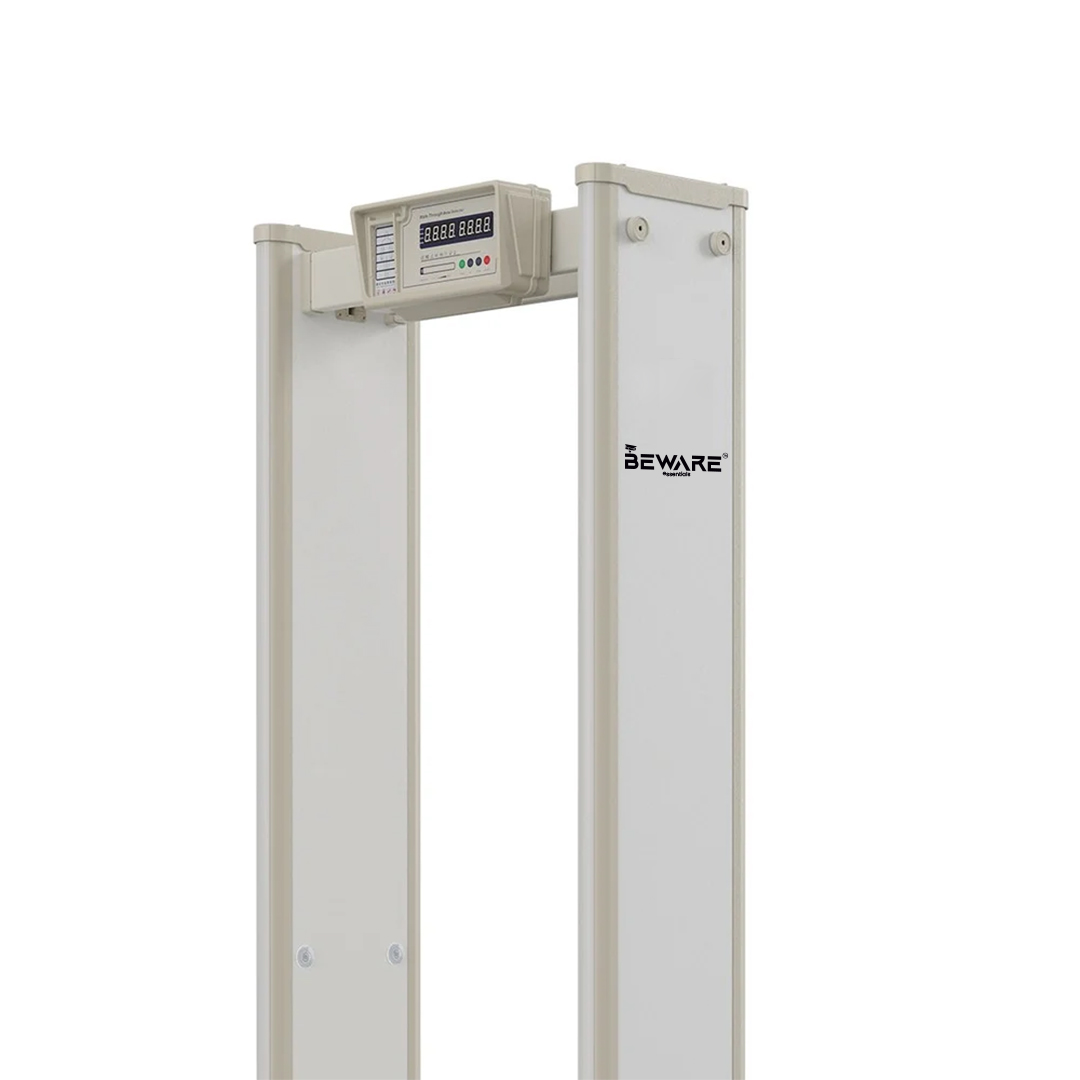

The BEWARE Multi Zone Door Frame Metal Detector (DFMD) is a high-precision walk-through security scanner designed for advanced threat detection in high-traffic areas. Equipped with multi-zone detection, LED location indicators, adjustable sensitivity levels, audio-visual alarms, and infrared people counting sensors, it enables fast and accurate screening while maintaining safe operation for all individuals.

  • Brand :BEWARE
  • Product SKU :BW-18ZD
  • Category :Metal Detectors
  • Availability : In Stock
  • Seller :BLUEBETELS PRIVATE LIMITED
  • Tag :
    Top Selling Products, New Arrivals, Most Viewed
  • Description
  • Specification
  • Request Information
  • FAQs
  • Multi-Zone Detection Technology - Identifies the precise location of metal objects on the body for faster and more accurate screening.
  • LED Zone Indicator Panel - Visual LED indicators highlight the specific detection zone where metal is identified.
  • Adjustable Sensitivity Control - Multiple sensitivity levels allow security personnel to customize detection thresholds for different security environments.
  • Audio & Visual Alarm System - Integrated sound and light alarms instantly notify operators when metallic objects are detected.
  • Infrared People Counter & LCD Display - Built-in infrared sensors track entry and exit counts while the LCD control panel allows easy configuration and monitoring.

Performance

  • Detection Technology : Multi-Zone Detection
  • Detection Sensitivity : ≥ 10g Metal
  • Sensitivity Adjustment : 0 - 200 Levels
  • Detection Speed : 50 - 60 Persons / Minute
  • Working Frequency Bands : Up to 50 Optional Bands
  • Alarm System : Audio + Visual Alerts


Detection Indicators

  • LED Zone Indicator : Supported
  • Infrared Sensors : IN / OUT People Counter
  • Display : LCD Digital Control Panel


Electrical Specifications

  • Input Voltage : AC 100V - 240V
  • Frequency : 50 / 60 Hz
  • Power Consumption : 12W


Environmental Conditions

  • Operating Temperature : -20°C to +85°C
  • Working Humidity : Up to 99% (Non-Condensing)


Physical Details

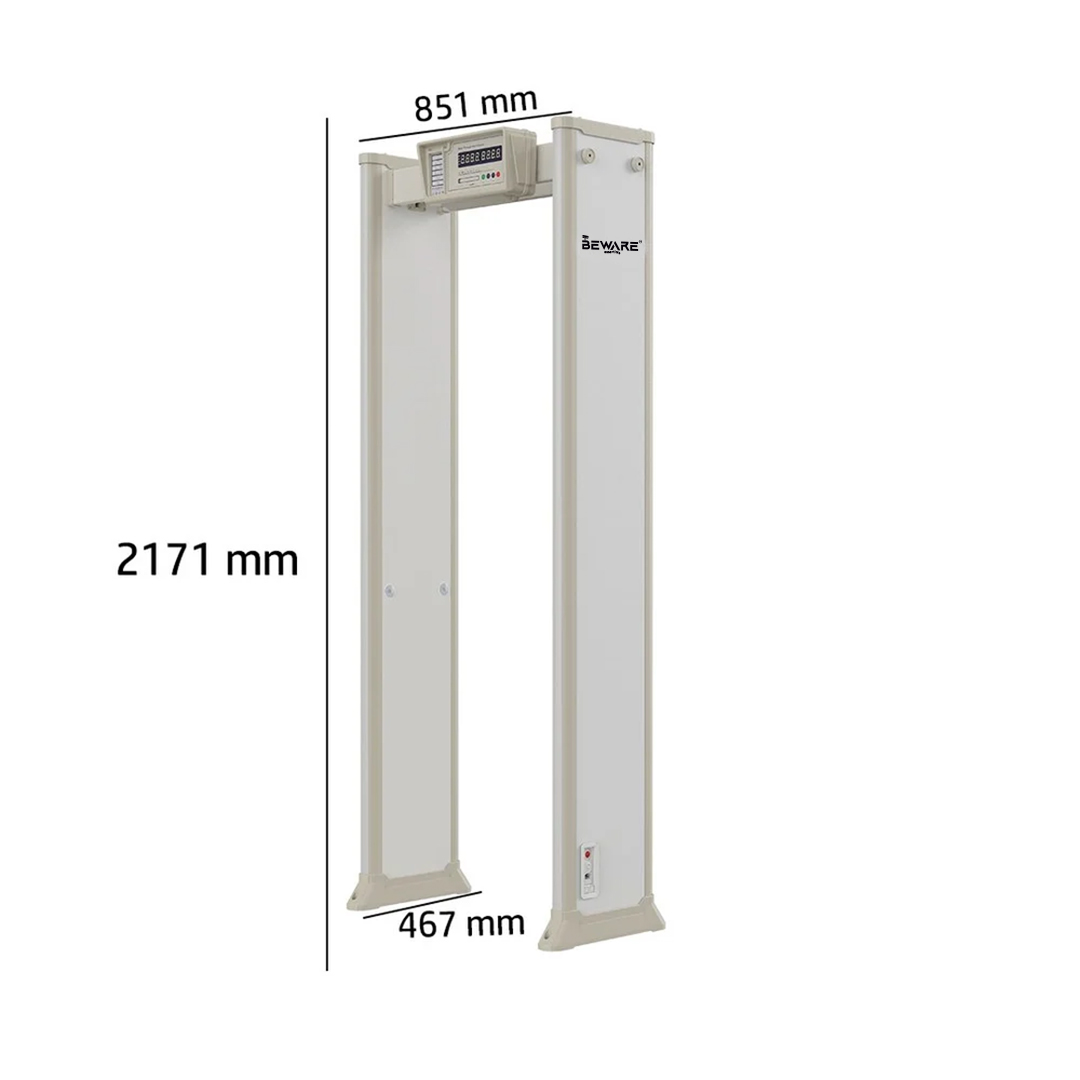

  • Outer Dimensions (H × W × D) : 217.1 × 85.1 × 46.7 cm
  • Channel Size : 201 × 76 × 36.8 cm
  • Net Weight : Approx. 40 kg
  • Gross Weight : Approx. 45 kg
  • Control Panel : LCD Display Panel

Request for Information

Multi-zone detection divides the BEWARE Door Frame Metal Detector into multiple independent scanning zones to help identify the approximate location of metallic objects on a person's body. This makes security screening faster and more precise because the LED zone indicators can show the area where metal has been detected, allowing security personnel to focus on that particular zone during further checking.

Yes, the BEWARE Multi Zone DFMD supports adjustable sensitivity from 0 to 200 levels, allowing security personnel to configure the detector according to the screening requirements of the location. This flexibility is useful for different security environments where operators may need to increase or reduce detection sensitivity to achieve the desired balance between security and unnecessary alarms.

The BEWARE Multi Zone Door Frame Metal Detector features both audio and visual alarm alerts. When a metallic object is detected, the system provides an audible alarm along with a visual indication, immediately notifying security personnel. This dual-alert system helps operators quickly identify potential metal detection events even in busy or high-traffic security checkpoints.

Yes, the BEWARE Multi Zone DFMD includes LED zone indicators that visually identify the area where metallic detection has occurred. The zone indication helps security personnel locate the approximate position of the detected object more quickly, reducing the time required for manual screening and improving the overall efficiency of the security checkpoint.

Yes, the BEWARE Multi Zone Door Frame Metal Detector is designed for high-sensitivity screening and can detect metallic objects weighing approximately 10 grams or more, depending on the selected sensitivity level and other installation conditions. Detection performance can vary based on the type, size, position, and composition of the metallic object.

Yes, the BEWARE Multi Zone DFMD features built-in infrared people-counting sensors for monitoring entry and exit movement. The system can record IN and OUT counts, helping organizations track pedestrian traffic and visitor movement at controlled entry points. This feature is particularly useful for offices, factories, schools, event venues, commercial buildings, and public facilities.

The BEWARE Multi Zone Door Frame Metal Detector can screen approximately 50 to 60 persons per minute, depending on the movement of people and the screening procedure being followed. Its high-throughput design makes it suitable for busy security checkpoints where large numbers of people need to be screened efficiently without creating unnecessary delays.

Yes, the BEWARE Multi Zone Door Frame Metal Detector is suitable for a wide range of controlled-entry environments, including airports, metro stations, schools, corporate offices, factories, stadiums, event venues, government facilities, and other security checkpoints. Its multi-zone detection, adjustable sensitivity, LED indicators, audio-visual alarms, and people-counting functionality make it suitable for locations requiring organized and efficient walk-through security screening.
