System Overview

• Camera Type : 2 × Bullet + 2 × Dome Cameras
• Camera Resolution : 2.4MP (1920 × 1080)
• DVR Type : 4 Channel AHD DVR
• Display : Not Included
• Application : Home / Office / Shop / Commercial Surveillance

Camera Specifications

• Image Sensor : 1/2.9" HD CMOS
• Resolution : 2.4MP (1920 × 1080)
• Lens : 3.6mm HD Fixed Lens
• Shutter Speed : 1/50 (1/60) - 1/100,000 sec
• Day/Night Mode : IR Cut Filter

Minimum Illumination

• Color : 0.1 Lux
• B/W : 0 Lux

Video & Image Processing

• Video Output : AHD - BNC
• Camera Pixels : 2.4MP (1080P)
• White Balance : Auto Tracking
• Back Light Compensation : Auto
• Gain Control : Auto
• Digital Noise Reduction : 3D DNR

Audio Features

• Audio Support : Yes
• Microphone : Built-in (Bullet Camera)
• Audio Recording : DVR Dependent

Night Vision & Lighting

• IR LEDs : 18 SMD IR LEDs
• IR Distance : Up to 20-30 Meters
• Full Color Vision : Not Supported
• Warm Light : Not Supported

Power & Operating Conditions

• Power Supply : DC 12V ±10%
• Max Current Consumption : 500mA
• Operating Temperature : -10°C to +55°C

Camera Build Details

Bullet Camera

• Body Material : Metal Housing
• Mount Type : Wall Mount
• Usage : Indoor & Outdoor

Dome Camera

• Body Material : Half Metal Housing
• Mount Type : Wall / Ceiling
• Usage : Indoor

DVR Specifications

• Operating System : Embedded Linux
• Video Compression : H.264 / H.265

Recording Modes

• Continuous
• Motion Detection
• Scheduled
• Operation Mode : Pentaplex

Video & Audio (DVR)

• Video Input : 4 Channel BNC

Video Output

• HDMI : 1
• VGA : 1
• Audio Support : Supported
• Alarm Input : 4 Channel
• Digital Zoom : Supported

Network & Remote Monitoring

• Network Interface : 1 × RJ45 (100 Mbps Ethernet)
• Mobile Monitoring : Android / iOS Supported
• PC Monitoring : Windows / Mac Supported
• PTZ Control : RS485 (Pelco-D / Pelco-P Supported)

Storage

• HDD Interface : 1 × SATA
• Maximum Storage : Up to 8TB (Not Included)

Backup & Connectivity

• USB Ports : Supported
• Backup Methods : USB / Network Backup

Power Supply (DVR)

• Input : DC 12V / 3A

Cable Specifications

• Cable Type : 3+1 CCTV Cable
• Core Structure : 1 Video + 2 Power Cores
• Video Transmission : Analog HD Signal
• Power Transmission : 12V DC
• Cable Length : 65 Meter
• Compatibility : AHD / TVI / CVI / CVBS Cameras
• Outer Material : PVC Insulated

BNC Connector Specifications

• Connector Type : BNC Male
• Connection Type : Bayonet Twist Lock
• Material : Metal (Nickel Plated)
• Compatibility : RG59 / RG6 Cable

DC Connector Specifications

• Connector Type : DC Male to Female
• Size : 5.5mm × 2.1mm
• Voltage Support : 12V DC
• Material : Copper / PVC Insulated

SMPS (Power Supply Unit) Specifications

• Input Voltage : AC 110V-240V
• Output Voltage : DC 12V
• Channels : 4 Channel
• Current Rating : 5A-10A

Protection Features

• Short Circuit Protection
• Overload Protection
• Over Voltage Protection
• Mount Type : Wall / Surface Mount
• Body Material : Metal

General Features

• System Type : Wired
• Weather Resistance : Yes (Bullet Cameras)
• Installation : Wall / Ceiling / Desktop

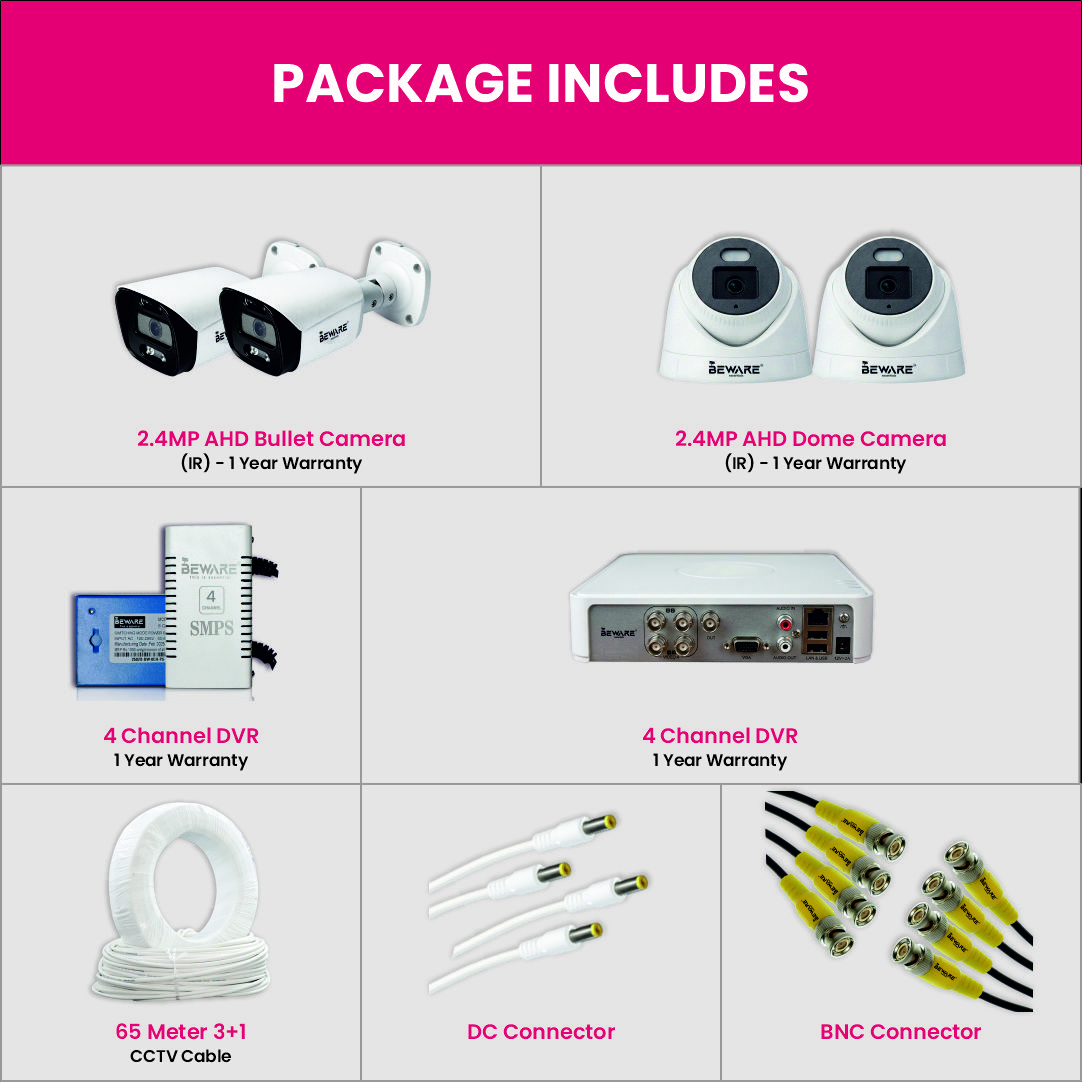

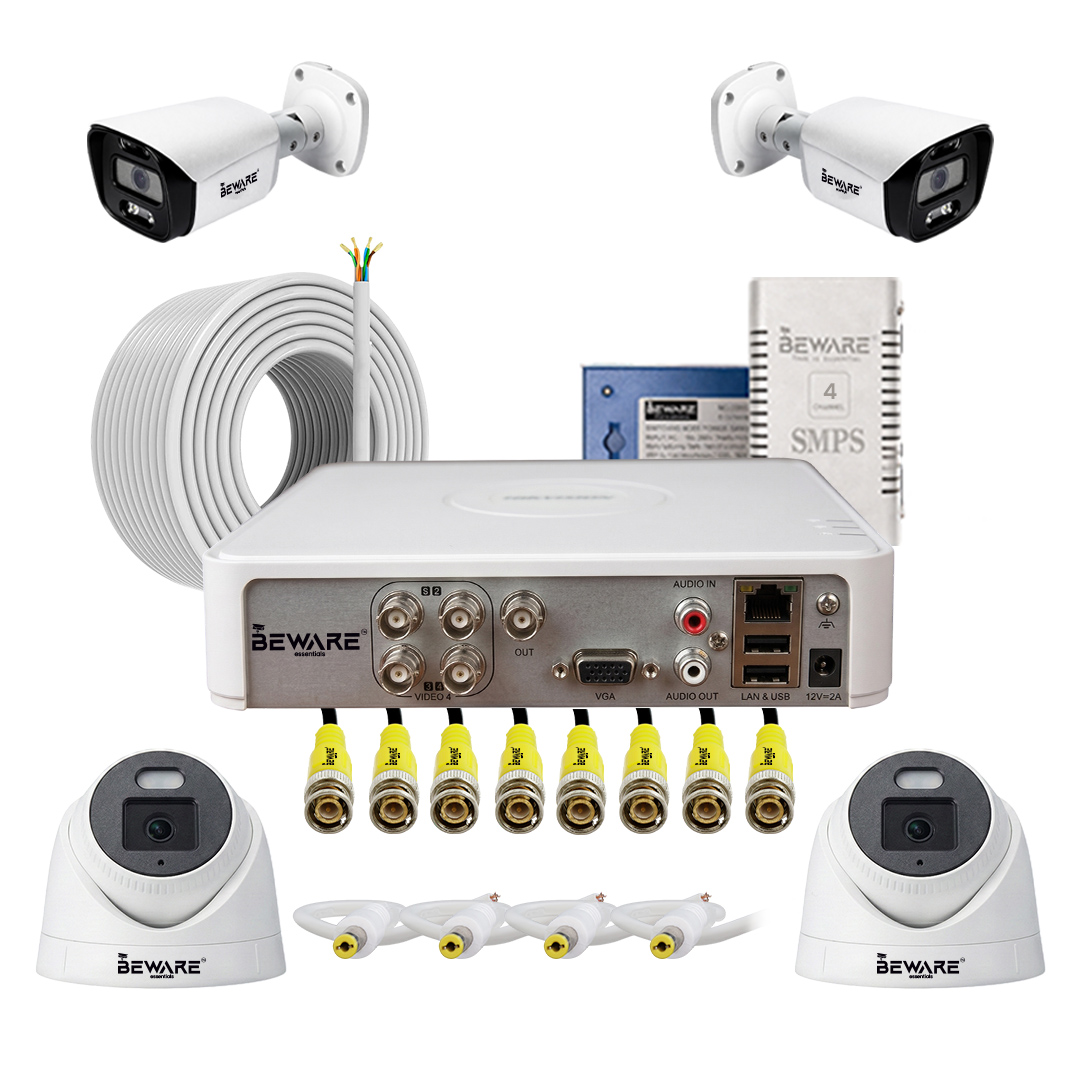

Included in the Box

• Bullet Camera : 2 × 2.4MP
• Dome Camera : 2 × 2.4MP
• DVR : 1 × 4 Channel
• Cable : 1 × 65 Meter
• BNC Connectors : 8
• DC Connectors : 4
• SMPS : 1 × 4 Channel

Warranty

• Cameras : 1 Year
• DVR : 1 Year
• SMPS : 3 Months
