BEWARE 16 Channel NVR with 1 SATA | 12MP IP Camera Network Video Recorder

Recorders

BEWARE 16 Channel NVR with 1 SATA | 12MP IP Camera Network Video Recorder

₹20000 ₹7200

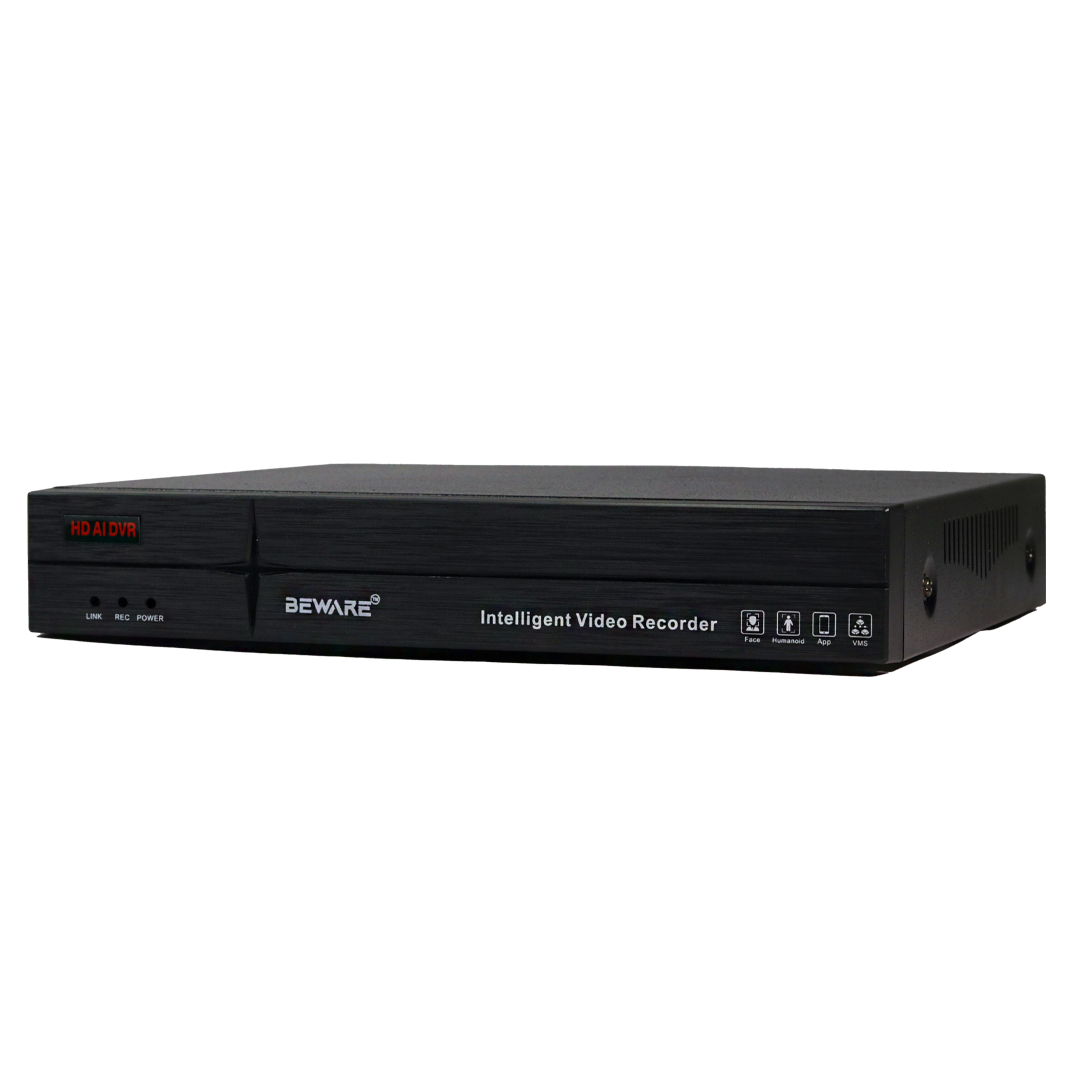

The BEWARE 16 Channel NVR - 1 SATA is a compact and efficient network video recorder designed for modern IP camera surveillance systems. Supporting up to 16 IP cameras with 12MP resolution, advanced H.265 compression, and up to 8TB storage, it delivers reliable video monitoring and recording. Ideal for homes, offices, retail stores, warehouses, and small commercial security systems.

Brand :BEWARE
Product SKU :BW-2601-16M-HIN1
Category :Recorders
Availability : In Stock

Seller :BLUEBETELS PRIVATE LIMITED
Tag :
Top Selling Products, New Arrivals, Most Viewed
DataSheet :

Description
Specification
Request Information
FAQs

16 Channel IP Camera Support - Supports up to 16 IP cameras with up to 12MP resolution, ensuring wide surveillance coverage.
Efficient H.265 Video Compression - Reduces storage consumption and bandwidth usage while maintaining clear video recordings.
Dual Display Output (HDMI & VGA) - Allows simultaneous connection to monitors or TVs for real-time monitoring.
Up to 8TB Storage Capacity - Supports 1 SATA hard drive up to 8TB for reliable and long-duration video recording.
Motion Detection & ONVIF Compatibility - Includes motion detection alerts and ONVIF protocol support for multi-brand camera integration.

System

Operating System: Embedded Linux
Video System: NTSC / PAL (Supported)

Video

Video Compression: H.265
Video Input: 16 Channel IP Cameras
Maximum Resolution: Up to 12MP

Recording

Playback: Real-Time Playback
Search Modes: Time / Date / Alarm / Motion Detection / Exact Search
Playback Functions: Play / Fast Forward / Fast Rewind / Frame-by-Frame

Camera Support

Maximum Channels: 16 IP Cameras
Protocol Support: ONVIF Version 2.2 / 2.4 (Supported)
Compatibility: Multi-Brand IP Cameras (Supported)

Video Output

HDMI Output: 1 (Supported)
VGA Output: 1 (Supported)
Display Mode: HDMI & VGA Simultaneous Output (Supported)

Audio

Audio Input: Not Available
Audio Output: Not Available

Alarm

Alarm Input: Not Available
Alarm Output: Not Available
Event Alerts: Motion Detection (Supported)

Storage

HDD Interface: 1 SATA Port
Maximum Capacity: Up to 8TB

Backup

Backup Methods: USB Drive / Network / External Storage (Supported)

Network

Network Interface: 1 × RJ45 (10/100 Mbps Ethernet)
Protocols: TCP/IP, DHCP, DDNS, DNS, PPPoE, UPNP, NTP, SMTP (Supported)

External Ports

USB Ports: 2 × USB 2.0 (Supported)
PTZ Control: Supported

Electrical Specifications

Power Supply: DC 12V / 2A Adapter

Environmental Specifications

Operating Temperature: 0°C to 55°C
Humidity: 10% - 90% RH

Physical Details

Dimensions: Approx. 30 × 24 × 5 cm
Weight: Approx. 1 kg
Installation Type: Desktop

Request for Information

Your Name *

Email Address *

Mobile No. *

Request for Information *

Save my name, email, and website in this browser for the next time I comment.

The BEWARE 16 Channel NVR with 1 SATA supports up to 16 IP CCTV cameras with recording resolutions of up to 12MP, making it an ideal solution for medium and large surveillance installations. It allows centralized management of multiple IP cameras for locations such as offices, warehouses, retail stores, schools, hospitals, hotels, apartment complexes, and commercial buildings while delivering smooth live viewing and high-quality video recording.

The BEWARE 16 Channel NVR includes 1 SATA hard drive interface that supports up to 8TB of HDD storage. Combined with advanced H.265 video compression, the recorder efficiently minimizes storage usage while maintaining excellent image quality, allowing users to retain surveillance footage for longer periods without requiring additional storage devices.

Yes, the BEWARE 16 Channel NVR with 1 SATA is fully ONVIF compatible, allowing seamless integration with a wide range of ONVIF-supported IP CCTV cameras from different manufacturers. This gives users the flexibility to build, upgrade, or expand their surveillance system without being restricted to a single camera brand, making installation more cost-effective and future-ready.

Yes, the BEWARE 16 Channel NVR supports remote monitoring, live viewing, video playback, and system management through compatible mobile applications and PC software. Users can securely access their surveillance system from anywhere using an internet connection, receive motion detection notifications, and review recorded footage in real time for enhanced security and convenience.

The BEWARE 16 Channel NVR with 1 SATA features both HDMI and VGA video outputs, allowing simultaneous connection to security monitors, televisions, or display screens. This dual-output functionality provides flexible installation options for security control rooms, offices, commercial properties, and surveillance monitoring stations while delivering clear, high-definition video output.

The BEWARE 16 Channel NVR with 1 SATA is suitable for offices, retail chains, warehouses, factories, schools, hospitals, hotels, apartment buildings, restaurants, commercial complexes, and medium-sized IP CCTV surveillance systems. With support for 16 IP cameras, up to 8TB HDD storage, 12MP recording, H.265 compression, ONVIF compatibility, motion detection, HDMI & VGA output, and remote viewing, it offers a reliable and scalable recording solution for professional security installations.
