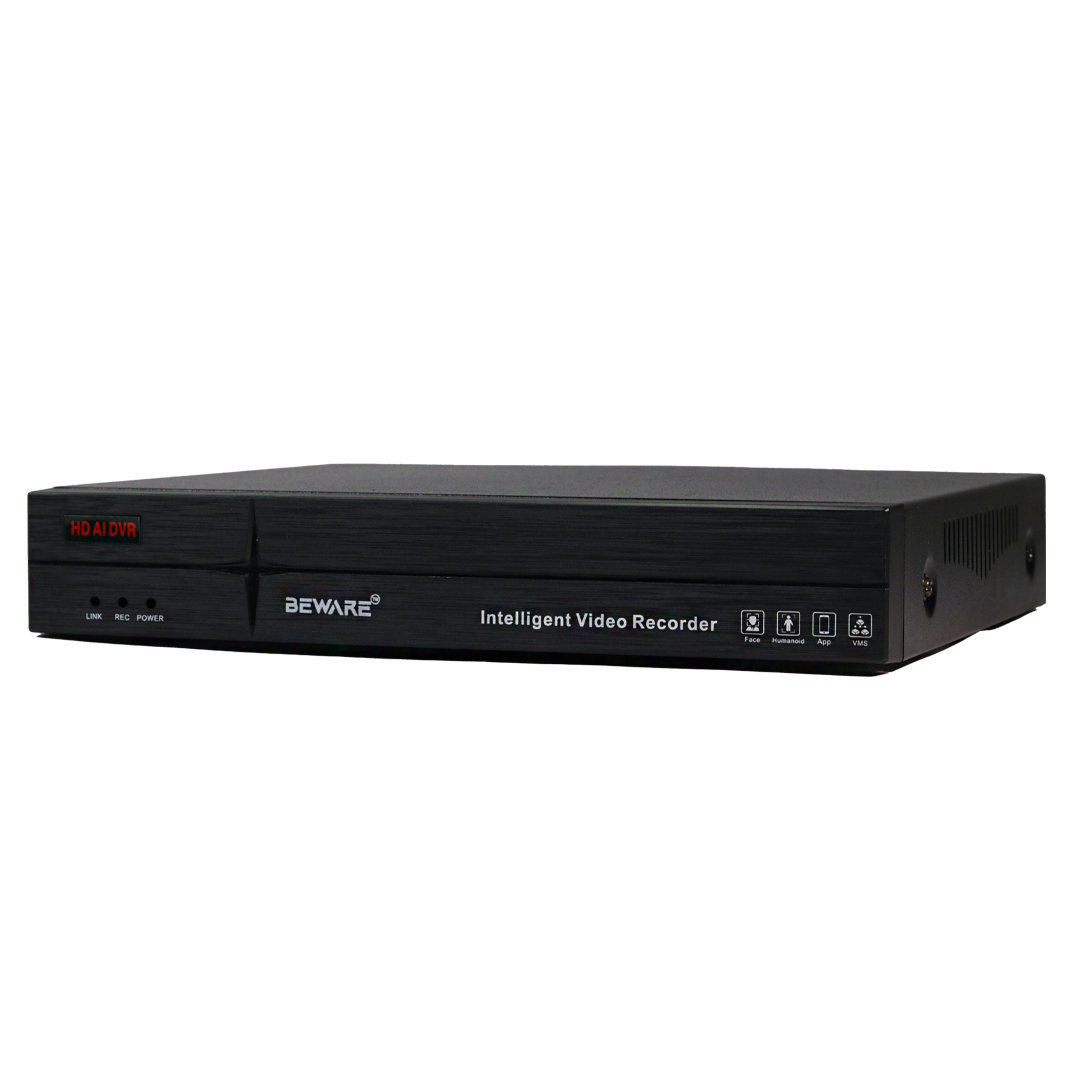

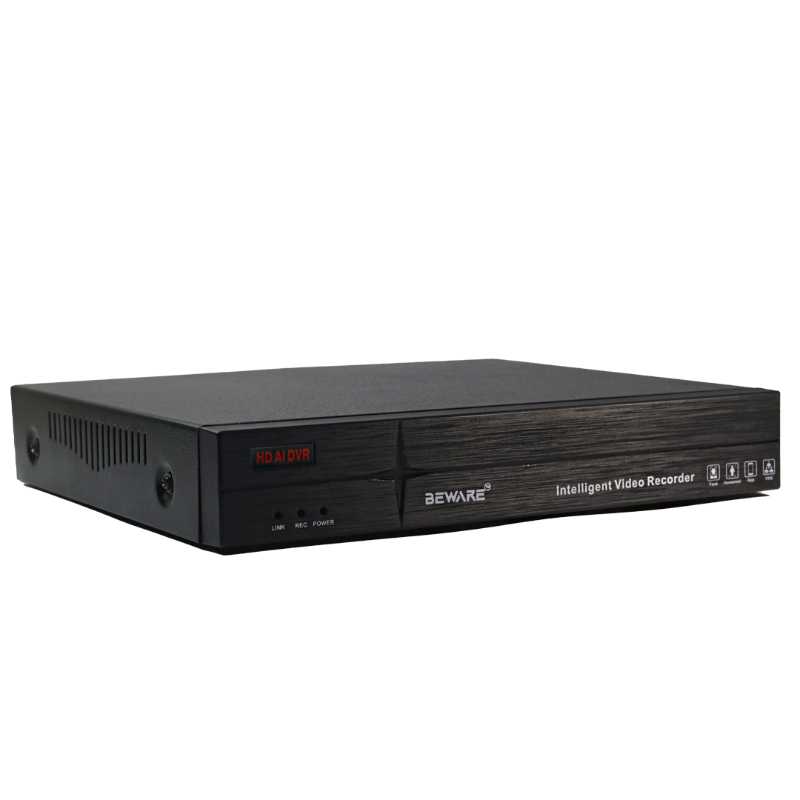

BEWARE 16 Channel DVR H.265 with 1 SATA for CCTV Cameras

All Categories

Home
BEWARE 16 Channel DVR with 1 SATA | H.265 CCTV Digital Video Recorder for 16 Cameras

Recorders

BEWARE 16 Channel DVR with 1 SATA | H.265 CCTV Digital Video Recorder for 16 Cameras

₹15000 ₹7800

The BEWARE 16 Channel DVR - 1 SATA is designed to manage and record footage from up to 16 CCTV cameras with reliable performance. Featuring H.265 video compression, HDMI & VGA output, and remote viewing support, it ensures efficient storage and clear surveillance monitoring. Ideal for homes, offices, warehouses, and commercial security installations.

Brand :BEWARE
Product SKU :BW-2602-16M-HD
Category :Recorders
Availability : In Stock

Seller :BLUEBETELS PRIVATE LIMITED
Tag :
Top Selling Products, New Arrivals, Most Viewed
DataSheet :

Description
Specification
Request Information
FAQs

16 Channel Video Input - Supports connection of up to 16 analog CCTV cameras for large surveillance systems.
1 SATA HDD Storage Support - Supports 1 SATA hard drive up to 8TB for extended video recording capacity.
HD Video Recording - Advanced H.264 / H.265 compression technology ensures clear video recording with efficient storage usage.
Remote Viewing Support - Access live video and playback through mobile devices or computers from anywhere.
Multiple Video Output Options - Includes HDMI and VGA outputs for flexible display connection with TVs and monitors.

System

Operating System: Embedded Linux
Video Compression: H.264 / H.265
Recording Mode: Continuous / Motion Detection / Scheduled
Operation Mode: Pentaplex (Live, Record, Playback, Backup, Remote Access)

Video & Audio

Video Input: 16 Channel BNC
Video Output:
- 1 × HDMI (Supported)
- 1 × VGA (Supported)
Audio Support: Model Dependent
Digital Zoom: Supported

Network & Remote Monitoring

Network Interface: 1 × RJ45 (10/100 Mbps Ethernet)
Mobile Monitoring: Android / iOS (Supported)
PC Monitoring: Windows / Mac (Supported)
PTZ Control: RS485 Support

Storage

HDD Interface: 1 × SATA
Maximum Storage: Up to 8TB

Backup & Connectivity

USB Ports: Supported
Backup Method: USB Drive / Network (Supported)

Electrical Specifications

Power Supply: 12V / 3A

Environmental Specifications

Operating Temperature: -10°C to +55°C
Humidity: 10% - 90% RH

Physical Details

Dimensions: Approx. 30 × 25 × 5 cm
Weight: Approx. 1.8 kg
Installation Type: Desktop / Rack Shelf Placement

Request for Information

Your Name *

Email Address *

Mobile No. *

Request for Information *

Save my name, email, and website in this browser for the next time I comment.

The BEWARE 16 Channel DVR with 1 SATA is designed to support up to 16 analog CCTV cameras, making it ideal for medium and large surveillance installations. It is widely used in commercial offices, warehouses, factories, schools, hospitals, hotels, retail outlets, restaurants, residential societies, apartment complexes, educational institutions, parking areas, and industrial facilities where multiple cameras need to be monitored and managed from a single DVR system.

The BEWARE 16 Channel H.265 DVR supports one SATA hard drive with a maximum capacity of up to 8TB, providing reliable storage for continuous surveillance recording. Its advanced H.264 and H.265 video compression technologies significantly reduce storage requirements and network bandwidth consumption while maintaining high-quality video, allowing businesses to store more footage for longer periods without requiring additional storage.

Yes. The BEWARE 16CH Digital Video Recorder supports remote CCTV monitoring through Android smartphones, iPhones, Windows PCs, and Mac computers. Users can securely access live video, review recorded footage, manage recording settings, and monitor multiple locations remotely through compatible surveillance software, making it convenient for business owners and security personnel to stay connected wherever they are.

The BEWARE 16 Channel DVR is equipped with HDMI and VGA simultaneous video outputs for connecting security monitors or televisions. It supports Pentaplex operation, allowing users to perform live viewing, continuous recording, playback, backup, and remote access simultaneously. Additional features include scheduled recording, motion detection recording, digital zoom, USB backup, audio support (model dependent), and intelligent playback controls, helping users efficiently manage CCTV footage.

Yes. The BEWARE 16 Channel DVR with 1 SATA includes RS485 PTZ control support, enabling users to operate compatible pan-tilt-zoom CCTV cameras directly through the DVR interface. With 16 BNC camera inputs, it offers excellent scalability for expanding surveillance coverage across larger premises while maintaining centralized recording and monitoring.

The BEWARE 16 Channel DVR with 1 SATA combines 16-camera recording capability, H.264/H.265 video compression, support for up to 8TB HDD storage, HDMI & VGA outputs, Pentaplex functionality, remote mobile viewing, PTZ camera compatibility, USB backup, motion detection recording, and stable embedded Linux performance into one professional CCTV recording solution. It is an excellent choice for organizations seeking dependable, scalable, and cost-effective video surveillance for commercial, industrial, institutional, and residential security applications.
